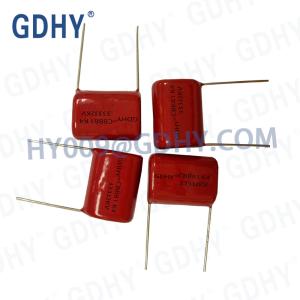

21MM 333nF CBB Polypropylene Film Capacitor 2000VDC

Product Categories

Guangdong Huayu Electronic Company Limited

Contact Now

Name: 21MM 333nF CBB Polypropylene Film Capacitor 2000VDC
Brand: GDHY
Price: 0.1 USD

Brand Name : GDHY

Model Number : CBB81-333J2KV-21RN

Certification : SGS,ISO

Place of Origin : GUANGDONG, CHINA

MOQ : 30KPCS

Price : 0.1 USD/ PCS

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1000 KPCS/ MONTH

Delivery Time : 14 DAYS

Packaging Details : PAPER CARTON

PLACE OF ORIGIN : GUANGDONG, CHINA

TYPE : Film Capacitor

MATERIAL : Polypropylene Film

COLOR : Red

APPLICATION : This product is ideal for high current, high frequency, high pulse rise time circuits

DIMENSION : 20MM *17.5MM*12MM

TOLERANCE : ±5%;±10%;

SUPPLIER TYPE : ORIGINAL MANUFACTURER

RATED DC VOLTAGE : 2000VDC

ENCAPSULATION : Use epoxy resin to seal

MODEL : CBB81-333J2KV-21RN

CAPACITANCE : 333nF

PITCH : 21MM

Terminals : Clip

OPERATION TEMPERATURE : -40 ℃～85℃, Tmax+105℃

CHARACTERISTICS : Metal plastic package, Sealed with epoxy resin

OEM/ODM : OEM/ODM

Contact Now

333nF CBB Polypropylene Film Capacitor Hot Sale 2000VDC

Reference Standards	GB/T 14579 (IEC 60384-17)
Climate Category	40/85/21
Operating Temperature Range	-40℃~85℃
Capacity Range	0.001uf-0.1uf
Rated Voltage	800VDC,1000VDC,1200VDC,1600VDC,2000VDC
Capacity Tolerance	±5%(J);±10%(K);±20%(m)
Withstand voltage	Vt-t:1.6Un 5S (at 20±5℃)
Insulation Resistance	R C≥3000s；at 100VDC;25℃ ±5℃,60s

Application

It is widely used in electric mosquito swatter, buffer, transfer switch, high voltage power supply, electronic ballast.

Features

It is a non-inductive structure, made of metalized polypropylene film as the dielectric and aluminum foil as the electrode
Tinned copper clad steel wire
Use epoxy resin to seal
Low high-frequency loss, minimal internal temperature rise, high reliability
Negative capacitance temperature coefficient and good stability
